Products Description

Hot coding foils or hot stamping foils are most commonly used for printing the important data onto the product packing.By the help of the heat and pressure from the coding machine,the foil color is transferred onto the substrate product to create the desired information or image.

Hot coding foils of Fineray brand for printing date production and expiry date,price and batch number.

Hot stamping foil working with coding machine, is used for printing marks on the packages of goods, including date, price and
batch number etc. The product could be used on printing on plastic bags, cards, films, adhesive tapes, leather, and cartons. They
have excellent adhesion and can print legible characters. Also it is scratch resistant.
The size we can manufacture:
Ribbon width:20,25,30,35,40,45,50mm,etcRibbon length:100,122,183,200,300m,etc
Jumbo Roll:660mm x 6000m
If you need OEM service,just contact us!

Specification

There are 4 types of hot coding foil that we are manufacturing,including FC1,FC2,FC3 and SCF.

FC1 properties:	FC1 is the high speed printing coding foil.
It has the outstanding printing quality and good resistance against scratch,it can be used under the high printing speed up to 450 times per minute.
Total Thickness	23.5 ± 1.5 um
Ink Thickness	11.5 ± 1.5 um
Printing Temperature	95℃-160℃
Prunting Speed	0-450 Times/Min
Available Color	black
Recommended Substrate	Polyester,PET,PVC,PE,PP,Alumium metal etc
Compatible Printers	DY-8,HP-241,HP-30
Recommended Applications	food industry,medical,supermarket,etc

FC2 properties:	FC2 is our standard hot coding foil.
It has the sharp and clean printing quality with the excellent color density.It is available in black,red and blue colors.
Total Thickness	22.5 ± 1.5 um
Ink Thickness	10.5 ± 1.5 um
Printing Temperature	85℃-140℃
Prunting Speed	0-300 Times/Min
Available Color	black,red,blue
Recommended Substrate	Polyester,PET,PVC,PE,PP, etc
Compatible Printers	DY-8,HP-241,HP-30
Recommended Applications	food industry,medical,supermarket,etc

FC3 properties:	FC3 is our bestselling hot coding foil.
Besides the sharp printing image and the good scratch-resistance,FC3 offers the excellent adhesion to a wide range of substrate including aluminum.
Total Thickness	23.5 ± 1.5 um
Ink Thickness	11.5 ± 1.5 um
Printing Temperature	110℃-160℃
Prunting Speed	0-260 Times/Min
Available Color	black
Recommended Substrate	Polyester,PET,PVC,PE,PP, Aluminum,etc
Compatible Printers	DY-8,HP-241,HP-30
Recommended Applications	food industry,medical,supermarket,etc

SCF-900 properties:	SCF-900 is our premium coding foil.
It has the best of the performance all-around,and support the printing speed up to 600 times per minute.It's available in black,white,yellow,gold and silver.
Total Thickness	23.5 ± 1.5 um
Ink Thickness	11.5 ± 1.5 um
Printing Temperature	95℃-160℃
Prunting Speed	0-600 Times/Min
Available Color	black,white,yellow,gold,silver
Recommended Substrate	Polyester,PET,PVC,PE,PP,PS, Aluminum,etc
Compatible Printers	DY-8,HP-241,HP-30
Recommended Applications	food industry,medical,supermarket,etc

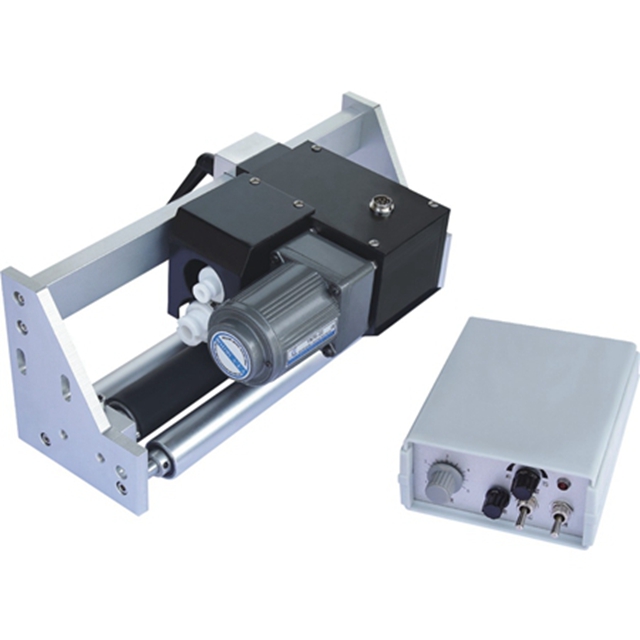

There are basically 3 types of coding machine available in the market:

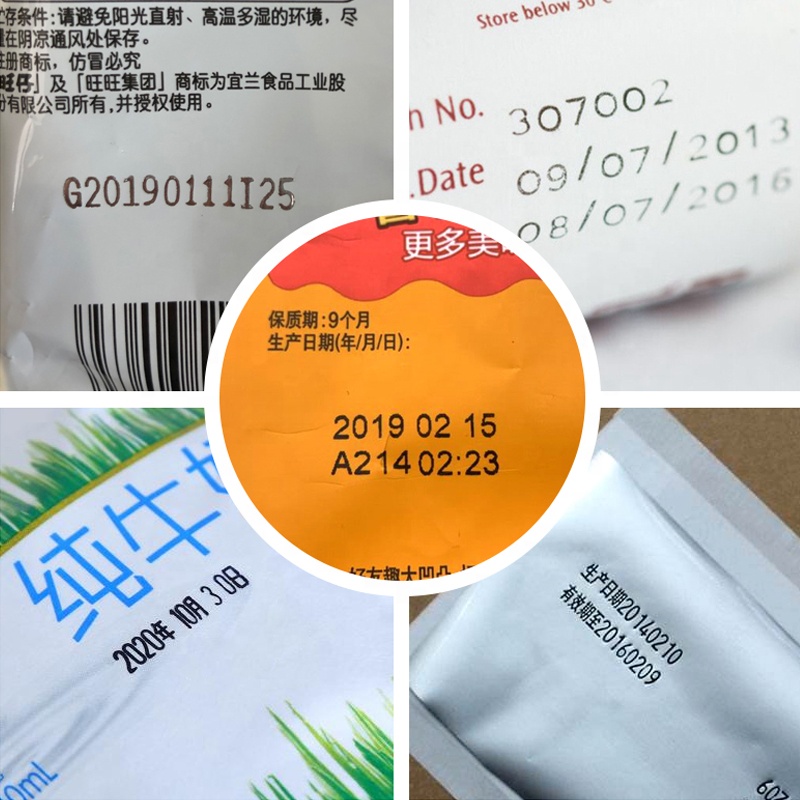

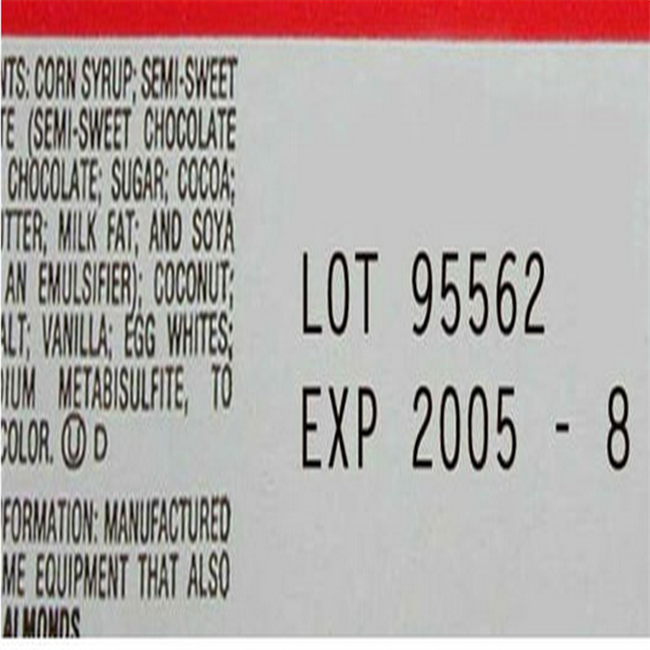

Printing effect of hot coding foil:

Product application

Code ribbon
